ProLine PQ AL
Our Proline PQ AL UV systems integrate an innovative multiple low-pressure lamp chamber with sensors and intelligent control technology to automatically deliver optimum treatment performance with high operational efficiency.
Description
VALIDATED UV TREATMENT FOR DRINKING WATER
Our Proline PQ AL UV systems are optimized to deliver effective UV treatment for drinking water. Integrating an innovative multiple low pressure lamp chamber with sensors and intelligent control technology to automatically deliver optimum treatment performance with high operational efficiency. Eliminating harmful microorganisms, reduce the bio-burden, protect against biofouling. Each system comes with a certified dry UV sensor allowing checking of UV performance. The UV sensor measures the germicidal output of the UV system and a UV dose read out makes it easy to monitor and log performance. The control system also has the ability to take flow and transmittance meter inputs and calculate the UV dose based on real time operating conditions.

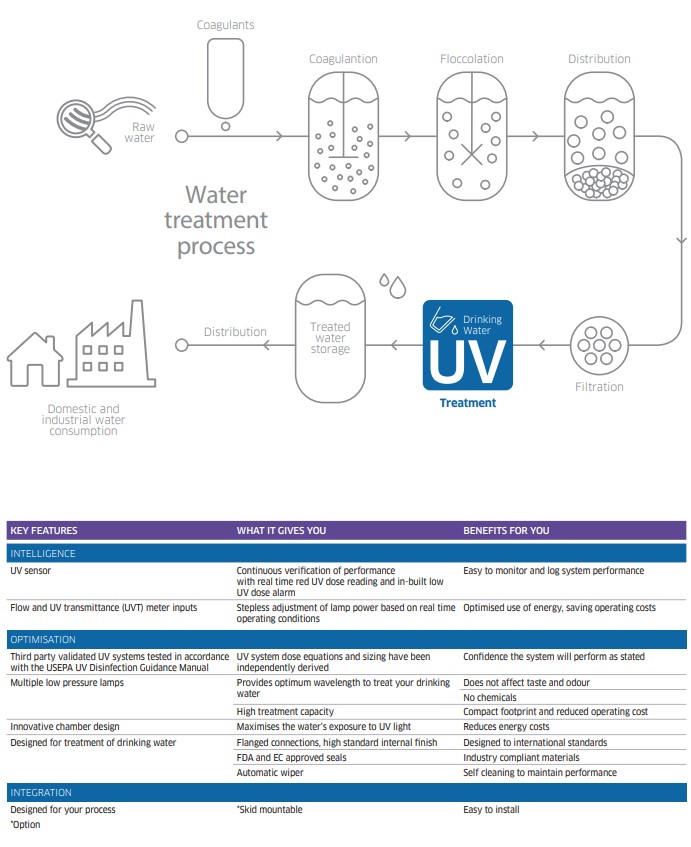

POTENTIAL LOCATION OF PROLINE PQ AL™ IN DRINKING WATER TREATMENT PROCESS
Additional information
| Material | Aluminium, Stainless Steel |
|---|---|
| Main Diameter(mm) | 76, 100, 168 |
| Sub-Main Diameter(mm) | 40, 42, 50, 60, 63, 76, 100 |
