Flo-Pac + Pleated Depth | Filter Cartridges

Description

Construction for organic solvent fi ltration

Parker Fulflo Flo-Pac + pleated cartridges are the filters of choice for many industrial filtration requirements. These cartridges are manufactured
with premium grade, phenolic impregnated cellulosic filter media for long service life, high flow rate and low pressure drop. Unique epoxy
resin bonding of end caps, pleat side seal and gaskets provides excellent resistance to most organic solvents.

Flo-Pac+ pleated cartridges are available in 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, & 60μm pore sizes (95% removal; ß = 20).

Benefits

• Epoxy bonding of end caps, pleat side seal and gaskets provides resistance to most organic solvents
• Premium pleated cellulosic media allow high flow capacity at low pressure drop
• Available in a variety of sizes & configurations to fi t most industrial vessels
• Impregnated phenolic resin provides strength, integrity and high contaminant capacity
• Suitable for operating temps. to 250°F (121°C)
• Perforated outer metal sleeve protects media against damage
• ETP (Electro-tin-plated) steel metal components for aqueous and oil-based applications
• Gaskets provide positive seals and are available in Viton,* cork and standard Vellumoid
• Recommended range is pH 4-10. (Please call for specific recommendation)
• Spiral core withstands pressure surges to 100psid
• ISO 9001 registered company

Applications

• Aromatic Hydrocarbons (toluene, xylene, benzene)
• Ketones (acetone, isophorone, methylethyl ketone)
• Ethers (THF, dioxane)
• Amines (DEA, TEA, DMEA)
• Glycols (ethyl acetate, cellosolve acetate)
• Aliphatic Hydrocarbons (hexane,pentane, naphtha)
• Halogenated Hydrocarbons (methylene chloride, perchloroethylene)
• Esters (EG, PEG, DEG)

Specifications

Materials of Construction:

• Filter Media: Phenolic impregnated cellulose
• Cores ETP steel
• End Caps: ETP steel
• Sleeve: ETP steel
• Adhesive: Epoxy
• End Seals: Vellumoid (standard), Viton®, cork

Packaging:

• 300 Series:
  • 310–24/carton (12 lb ≈ shipping wt)
  • 320–12/carton (12 lb ≈ shipping wt)
  • 330–12/carton (18 lb ≈ shipping wt)
  • 340–12/carton (24 lb ≈ shipping wt)
• 600 Series:
  • 614–6/carton (20 lb ≈ shipping wt)
  • 629–6/carton (40 lb ≈ shipping wt)
• 700 Series:
  • 718–6/carton (20 lb ≈ shipping wt)
  • 736–4/carton (26 lb ≈ shipping wt)

Maximum Recommended Operating Conditions:

Temperature: 250°F (121°C)
Change Out ∆P: 35 psid (2.4 bar)
Flow Rate per Single Length Cartridge:

• 300 Series 7 gpm
• 600 Series (3-1/2 in ID) 50 gpm
• 600 Series (1-9/16 in ID) 35 gpm
• 700 Series 50 gpm

Differential Pressure: 70psi (4.8bar)

Dimensions:

• 300 Series
  • 2½ in OD x 1 in ID x 9 5⁄8 in, 19 ¾ in, 29 ¼ in, 29 5⁄8 in and 40 in long
• 600 Series
  • 6 ¼ in. OD x 3 ½ in. ID or 1 9⁄16 in. ID x 14 3⁄8 in. long or 29 in. long
• 700 Series
  • 6 ¼ in OD x 2 5⁄8 in or 2 1⁄8 in ID x 18 in or 36 in long

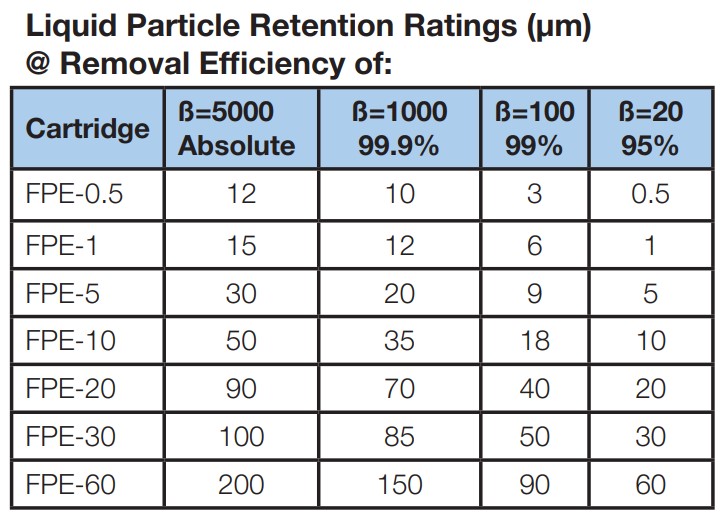

Filtration Ratings:

95% at 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, and 60μm pore sizes

Ordering Information
