Fulflo Flo-Pac | Filter Cartridges

Description

Superior Industrial Filtration From a Pleated Cartridge Design

Parker Fulflo Flo-Pac Cartridges are the perfect choice for many industrial filtration requirements. Flo-Pac pleated cartridges contain premium grade, phenolic impregnated cellulosic filter media. Parker’s line of pleated cartridges is designed for critical filtration applications, providing long service life, high flow rate and low pressure drop.

Flo-Pac Pleated Cartridges are available in 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, and 60μm pore sizes (95% removal; ß = 20).

Benefits

• Pleated cellulosic media allow high flow capacity at low pressure drop
• Available in a variety of sizes and configurations to fit most industrial vessels
• Phenolic resin impregnated to provide strength, integrity and high contaminant capacity
• High strength spiral core withstands pressure surges to 100 psid
• Suitable for operating temperatures to 250°F (121°C)
• Outer sleeve protects the media from damage
• ETP (Electro-tin-plated) steel metal components for both aqueous and oil-based applications
• Buna-N gaskets are standard, other materials are available

Applications

• Water Soluble
• Coolants
• Quench Oils
• Fuels
• Lubricating Oils
• Hydraulic Oils
• EDM Dielectrics
• Rolling Mill Oils
• Processing Liquids
• Gasoline

Specifications

Materials of Construction:

• Filter Media: Phenolic impregnated cellulose
• Cores: ETP steel
• End Caps:  ETP steel
• Sleeve: 300 series – polypropylene / 600 & 700 series – ETP steel
• Adhesive: Thermosetting PVC
• End Seals: 300 & 700 Series–Buna-N / gaskets, 600 Series–Buna-N gaskets/grommets, 500 Series–fiber gaskets

Packaging:

• 300 Series:
  • 310–24/carton (12 lb ≈ shipping wt)
  • 320–12/carton (12 lb ≈ shipping wt)
  • 330–12/carton (18 lb ≈ shipping wt)
  • 340–12/carton (24 lb ≈ shipping wt)
• 500 Series:
  • 518–6/carton (14 lb ≈ shipping wt)
• 600 Series:
  • 614–6/carton (20 lb ≈ shipping wt)
  • 629–4/carton (26 lb ≈ shipping wt)
  • 644–4/carton (40 lb ≈ shipping wt)
• 700 Series:
  • 718–6/carton (20 lb ≈ shipping wt)
  • 736–4/carton (26 lb ≈ shipping wt)
  • 754–4/carton (39 lb ≈ shipping wt)

Maximum Recommended Operating Conditions:

Temperature: 250°F (121°C)
Differential Pressure: 70 psi (4.8 bar)
Change Out ∆P: 35 psid (2.4 bar)
Flow Rate per Single Length Cartridge:

• 300 Series 7 gpm
• 500 Series 50 gpm
• 600 Series (3-1/2 in ID) 50 gpm
• 600 Series (1-9/16 in ID) 35 gpm
• 700 Series 50 gpm

Dimensions:

• 300 Series
  • 2-1/2 in OD x 1 in ID x 9-5/8 in, 19-3/4 in, 29-1/4 in, 29-5/8 in, 40 in
• 500 Series
  • 4-1/2 in OD x 1-3/4 in ID x 18 in
• 600 Series
  • 6-1/4 in OD x 3-1/12, 1-9/16 in or 1-1/4 in ID x 14-3/8, 29 or 43-3/8 in long
• 700 Series
  • 6-1/4 in OD x 2-5/8 in or 2-1/8 in ID x 18, 36, or 54 in long

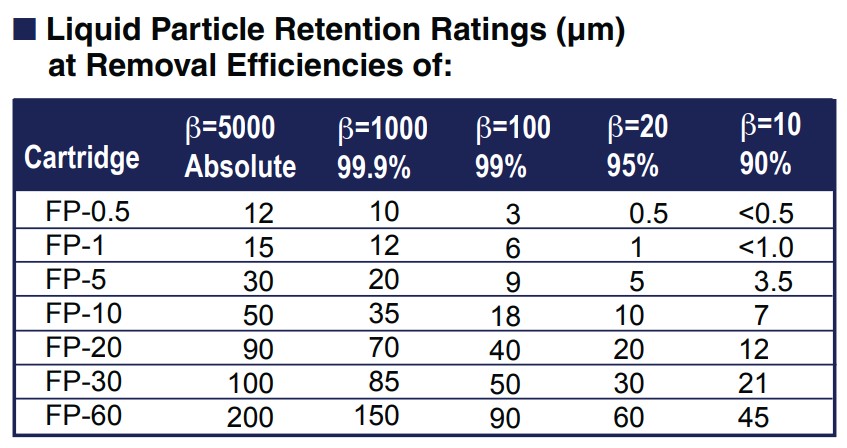

Filtration Ratings:

95% at 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, and 60μm pore sizes
