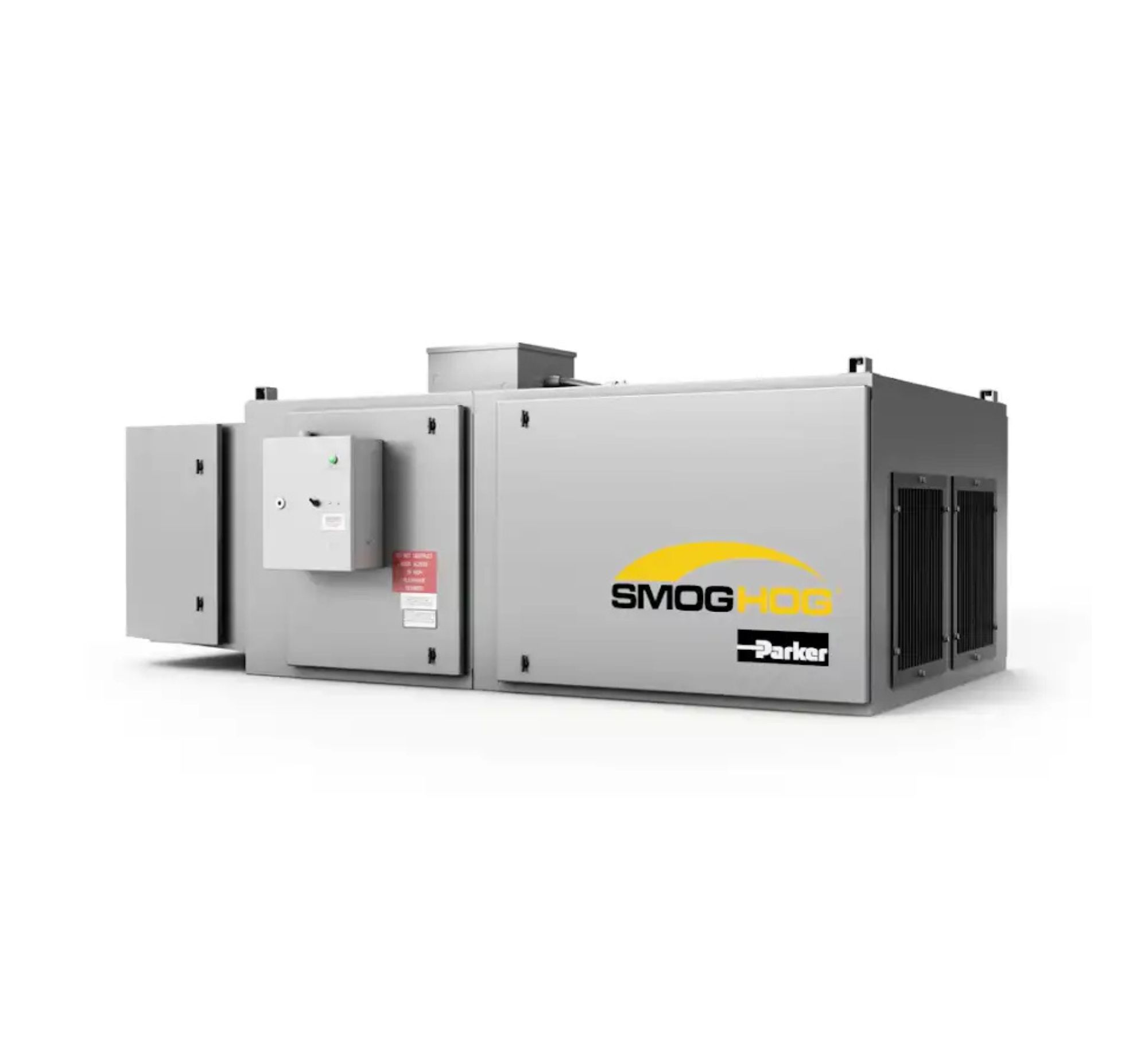

SmogHog® SGN – Ceiling mounted ESP mist collector
Ceiling or above floor mounted mist collector for water and oil-based coolants. The unit can be configured as an ambient air cleaner or duct can be connected for close to source capture applications. Additional accessories available.
Techni
Description
SGN units collect high-volume oil smoke and coolant emissions and are equipped for airflow capacities ranging from 2,200 to 9,000 CFM. SGN units powerful systems employ a single ESP unicell, which combines the ionizer and collection cell. SGN units have supplemental filtration accessories available. SGN units are made of a fully welded construction. SGN units have toolless door latches and quick access to motor/blower section. SGN units offer selectable blank inlet collar or various inlet diameters. Left to right, right to left and center exhaust airflow configurations, various motor horsepower and input voltages such as 208/230/460/575 designed to meet common industrial environments and application requirements. SGN units can be ducted, unducted, machine, wall and ceiling mounted. Options include application-specific power packs, drain bottle, drain loop trap, dual polarity, high or low-static pressure blowers, inlet/outlet plenums, mist-stop or perforated prefilter, motor starter, odor control modules, and single, double, triple pass ESP cell configurations.
The SHN/SGN Oil Mist Collector is Best in Class:
1. Costly filter replacements and disposal are eliminated with a reusable ESP collection component
2. Flexible installation options accommodate many application requirements, including lack of floor space
3. Increase company profitability with low energy consumption
4. Reducing maintenance and cleaning, contaminants drain off ESP collection component
5. Enjoy continuous clean air circulation as the unit will maintain consistent airflow at all times
6. No need for expensive silencers with the SHN/SGN collectors
This oil mist collector is available in ceiling and machine mount units. Eliminate smoke, mist, and dust generated by a variety of applications:
– Brazing
– Casting
– Cold forming
– Flame cutting
– Forging
– Gear cutting
– Heat treating
– Induction heating
– Lathes
– Plastic and rubber forming
– Quenching
– Screw machining
– Soldering
Technical Specifications
Height: 29 to 86
Width: 51 to 53 inch
Depth: 22 to 124 inch
Application: Mist, Smoke, Wet Particulate
Brand: SmogHog
Equipment Type: Ceiling Mount ESP mist filter, Direct Mount ESP mist filter
Filter Type: Electrostatic Precipitator
Weight: 550 lbs, 800 lbs, 875 lbs, 1300 lbs, 1275 lbs, 1900 lbs
Pressure Rating: Standard Static
Paint Type: Powder Coated
Color: Hog Gray
