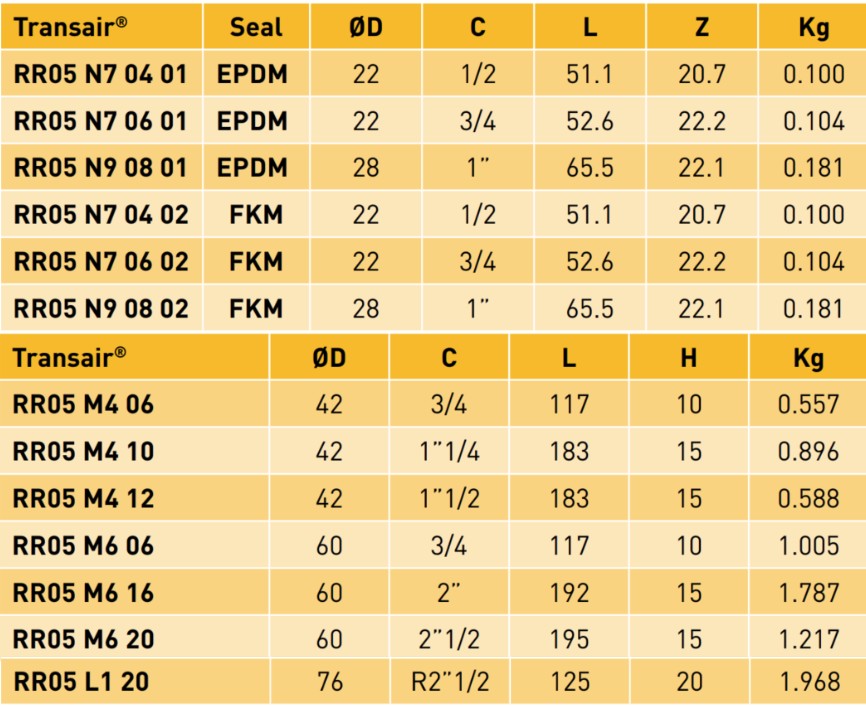

Transair® Stainless Steel Male Stud Fitting, BSP Taper [WS]

Transair Fittings for Stainless Steel Pipe are quick and easy to install. All fittings are designed to securely fit around Transair stainless steel pipe, increasing system efficiency and preventing leaks. Transair fittings for stainless steel pipe are available in a variety of styles for easy assembly and layout design for compressed air, vacuum, industrial/inert gas, process water, or chemical transfer system. Fittings are available with either FKM or EPDM for robust chemical compatibility.

The “full bore” design of Transair fittings pair with the low coefficient of friction in the stainless steel pipe ensures optimal flow throughout the system. All components are 100% recyclable, silicone free, and manufactured from materials with no propagation of flame. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.

Transair 3/4″ (22mm) and 1” (28mm) fittings use push-to-connect technology. To install, mark the insertion depth on the pipe and insert the pipe into the fitting until the edge of the connector meets the marked line on the pipe.

Transair 1-1/2” (42mm) and 2” (60mm) fittings use clamp ring technology. To install, place the clamp ring over the lugs at the end of the pipe and slide the fitting nut in place. Next, hand tighten the nut onto the body. Lastly, use a pair of spanner wrenches to tighten the fitting one-half (1/2) turn. All 1-1/2” and 2” stainless steel pipe comes from the factory pre-lugged, but if field cutting is required, the lugs need to be made using a Transair lugging tool and die.

Transair 3” (76mm) and 4” (101mm) fittings use clamshell technology. To install, place the remove cartridge over the end of the pipe until it meets the lugs. Next, place the clamshell union over the cartridge and tighten the fitting using a cross bolt pattern. All 3” and 4” stainless steel pipe comes from the factory pre-lugged, but if field cutting is required, the lugs need to be made using a Transair lugging tool and die.

Product Features:

• Available sizes 1/2in (16.5mm) to 8in (220mm)
• Clean air
• Optimum flow rate performance
• Lightweight
• QUALICOAT certified surface finish
• Three colors: blue, gray, and green
• Suitable gases: compressed air, vacuum, nitrogen, argon
• Extruded pipe

Benefit:

• Clean air ISO 8573: 2001 & 2010 Class 1.1.1.
• Optimum flow rate performance
• Lightweight
• QUALICOAT certified surface finish
• 3 colours: blue (RAL 5012/BS1710), grey (RAL 7001), green (RAL 6029) (others: please consult us)
• Extruded pipe conforms to EN 755.2, EN 755.8 and EN 573.3

Specifications:

• Max. Working Pressure*: 188 PSI from -4°F to +140°F
• (12.9 bar form -20° to +60° C)
• 232 PSI from -4°F to +115°F
• (15.9 bar from -20° to +46.1° C)
• Vacuum: 98.7% (29.6″ Hg)
• Working Temperature: -4° to +140° F (-20° to +60° C)
