Refrigerated Air Dryers | Starlette Plus-E

Refrigerated Air Dryers | Starlette Plus-E

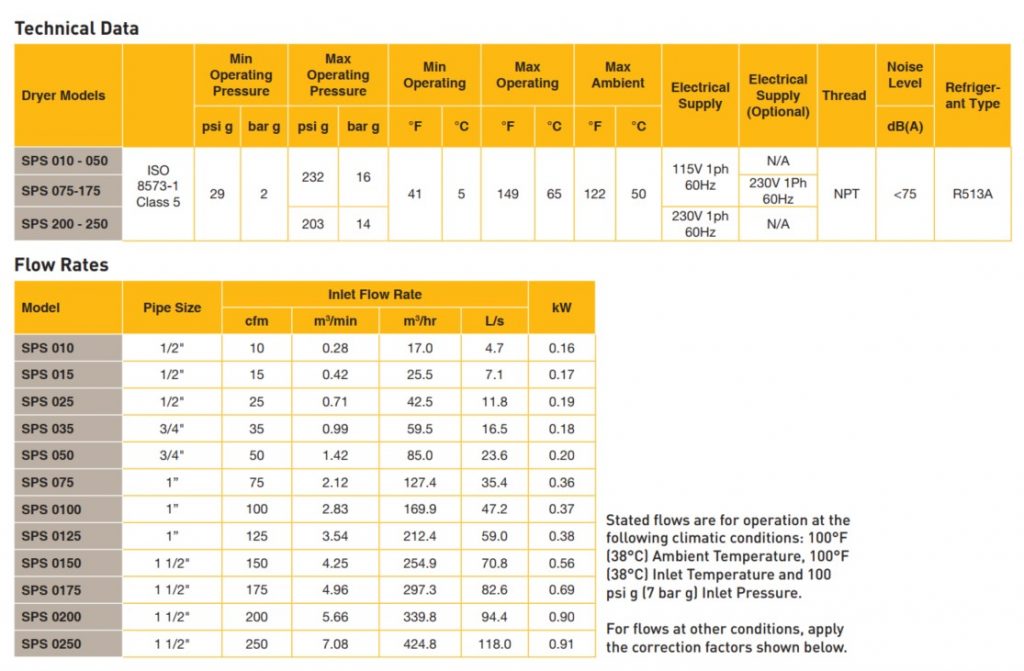

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

SPS In stock Brand:

Description

StarlettePlus-E Refrigeration Dryers [SPS 10 – 250]

Untreated compressed air is wet. 100% saturated as it leaves the compressor aftercooler, water vapour in the compressed air cools as it enters the air receiver and distribution piping, resulting in the formation of condensed liquid water and water aerosols. Wet compressed air leads to corrosion, the growth of micro-organisms and the formation of oily, acidic compressor condensate.

For a manufacturing facility reliant on compressed air for automation, these contaminants can directly impact safety, productivity and efficiency.

Compressed air treatment is therefore essential and for non-critical uses of compressed air, the refrigeration dryer is an ideal choice.



Refrigeration Dryers

Refrigeration dryers use a closed loop cooling system to lower the temperature of the compressed air to just above freezing, causing condensation of water vapour.

Most of the condensed liquid is then removed by an integral water separator and drained away. Prior to leaving the dryer, the compressed air is re-heated by the incoming compressed air to prevent condensation on the outside of the downstream distribution piping.

Designed with environmentally friendly, low Global Warming Potential (GWP) refrigerant gas, R513A, Parker’s SPS Series Refrigeration Dryers are the best choice for quality, performance and the environment.



Advantages

  • Parker StarlettePlus-E refrigeration dryers are developed around a state-of-theart aluminum heat exchanger (E-Pack), with a patent pending all-in-one design.
  • The E-Pack heat exchanger is designed with a large air/air heat exchanger to pre-cool the incoming hot, saturated compressed air and therefore reduce
    energy consumption.
  • The highly efficient E-Pack design results in a refrigeration circuit that uses a smaller volume of refrigerant than other comparable dryers and offers one of the lowest absorbed powers in the industry.
  • The E-Pack design utilizes low pressure drop, cross flow heat exchangers to reduce operational costs.
  • The E-pack heat exchanger includes a high efficiency stainless steel demister separator for liquid removal over all operating conditions.
  • Environmentally friendly, low Global Warming Potential (GWP) refrigerant gas, R513A, on all units.

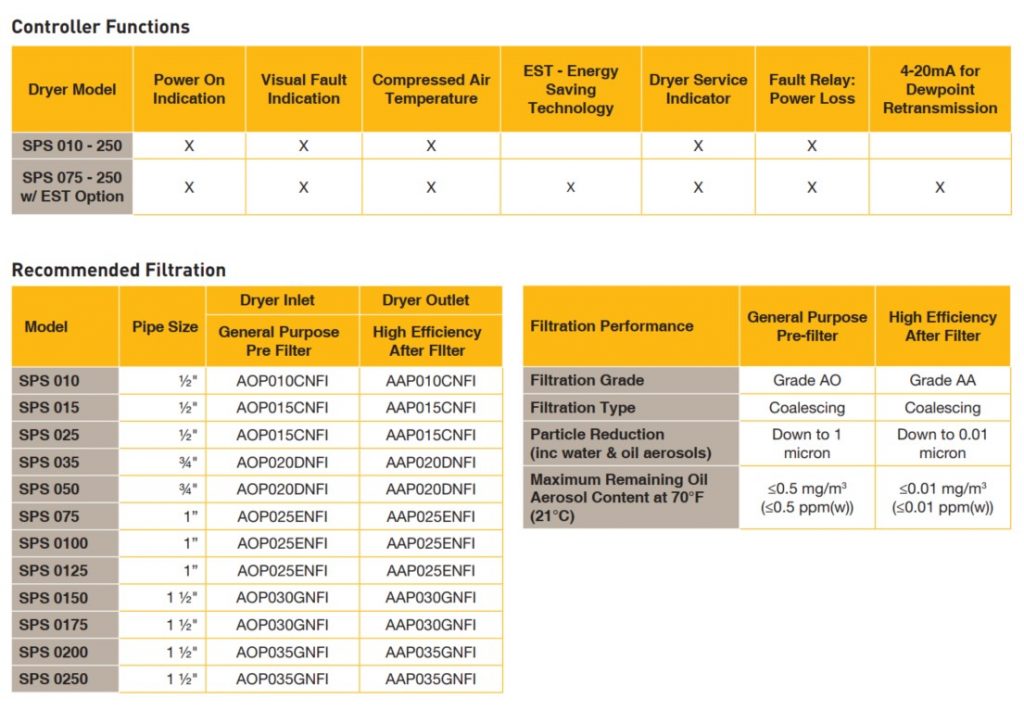

  • All models are equipped as standard with a digital controller that includes an indication of compressed air temperature, volt free alarm contact, service
    reminder and integral timed drain control.
  • All StarlettePlus-E models are ETL listed.
  • Optional Energy Saving (ES) models (SPS075 – SPS0250) saves energy by matching power consumption to compressed air demand. The ES models adjust to partial load conditions by allowing the refrigerant compressor to cycle off.
