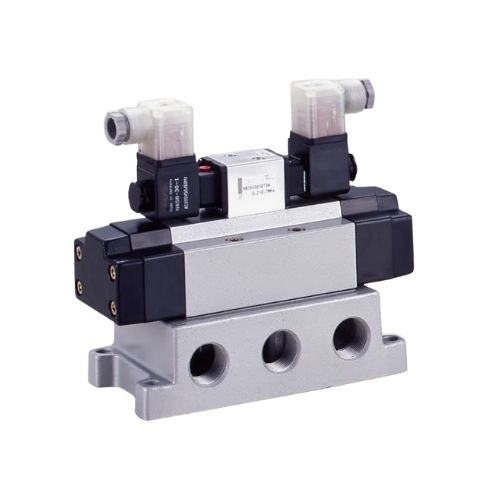

Solenoid Valve Model:RB58

Description

The RB58 series is an oil-free 5-port solenoid valve. Due to the uniquely developed packing seal, the spool function works extremely well in adverse environments with a lot of fine powder such as iron making, sawing, and milling. The connection port sizes are Rc3/4 and Rc1. In the case of the external pilot type, it can be used even from a pressure of 0 MPa.

Technical Specifications
Product Type: Sub plate type
Current: Holding current 24V DC:188 100V AC 50Hz:80,60Hz:56 200V AC 50Hz:40,60Hz:28 mA
Product Series: 5-port 2-position,5-port 3-position
Valve Configuration: 2-position single solenoid 2-position double solenoid, 3-position closed center 3-position exhaust center
Port Size: Rc3/4, Rc1 (P,A,B,R1,R2)
Orifice Size: Rc3/4 2 position:125mm² Rc3/4 3 position:110mm², Rc1 2 position:160mm² Rc1 3 position:140mm²
For Fluid Type: Air
Lubricant: Unnecessary(But possible), Additive-free turbine oil Class 1 ISO VG32 or its equivalent.
Pressure Rating: 0.2 to 0.7MPa, 0 to 0.7MPa(external pilot type)
Proof Pressure: 1MPa
Response Time: Single solenoid:60 Double solenoid:40 Closed center,Exhaust center:90 ms
Operating Temperature: -10 to +50℃(No freezing)(Ambient temperature and fluid temperature) °C
Override Functionality: Manual override:Pushing
Input Voltage: 24V DC 100V AC,200V AC 50/60Hz Both the 110V AC 50/60Hz and 220V AC 50/60Hz can be manufactured., 24V DC ±10% 100V AC ±10% 200V AC ±10%
Operating Current: 24V DC:188mA 100V AC 50Hz:80mA,60Hz:56mA 200V AC 50Hz:40mA,60Hz:28mA
Starting Current: 100V AC 50Hz:115mA,60Hz:95mA 200V AC 50Hz:57.5mA,60Hz:47.5mA mA
Power Consumption: DC24V：4.5W AC100V 50Hz：8VA､60Hz：5.6VA AC200V 50Hz：8VA､60Hz：5.6VA
Insulation: Insulation class:Class F
Ingress Protection Rating: Wiring part:Equivalent to IP65
Electrical Connection: DIN socket typr(D) DIN socket type With orange lamp(DL) DIN socket type With protective circuit,orange lamp(DW)
Indicator Type: 24V DC:LED 100V AC,200V AC:Neon lamp Lights color of indicating lamp is orange.
Weight: 3.3 kg Rc 3/4 Single Solenoid, 3.0 kg Rc 1 Single Solenoid, 3.7 kg Rc 3/4 Double Solenoid, Closed Center, Exhaust Center:, 3.4 kg Rc 1 Double Solenoid, Closed Center, Exhaust Center:

Features/Benefits:
・The spool uses a lightweight aluminum alloy that can withstand high-frequency and high-speed switching, and is surface-treated for excellent durability.
・A terminal box is adopted as standard, which simplifies the wiring work and increases the degree of freedom in the wiring direction.
・Internal pilot type and external pilot type are available.
・No refueling required.
