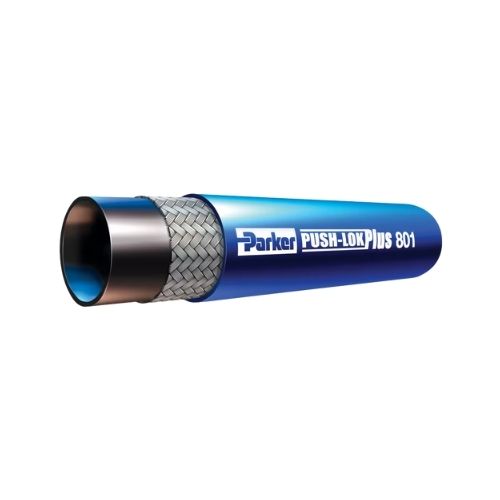

Push-Lok Plus Multipurpose Hose 200-350 PSI – 801 Hose

Description

Parker’s 801 general-purpose hose with Push-Lok Plus technology is a low-pressure, multipurpose synthetic rubber hose featuring Parker’s exclusive color-coding system. Suitable for use with a wide range of media, 801 hoses are compatible with petroleum-based hydraulic fluid and lubricating oils, pneumatic power, antifreeze, and, when coupled with HY Series fittings, diesel fuel. This versatile hose features the unique Push-Lok seal for easy assembly and to ensure reliable, durable, and leak-free service. Available in sizes ranging from ¼-inch to 1-inch in diameter, 801 hoses offer maximum working pressures ranging from 200 to 350 psi. The exclusive color-coding system enhances organization and assembly. Common uses include construction, utilities, machine tooling, ground support, industrial, and automotive applications.

Technical Specifications
Design Factor: 4:1
Cover Color: Black, Blue, Gray, Green, Red, Yellow
Maximum Operating Pressure: up to 24 bar, up to 2.4 MPa, up to 350 psi
Media: Air (Compressed Air), Coolants, Lubricants, Petroleum Hydraulic Fluids
Specifications Met: n/a
Compatible Fitting: HY Series, 82 Series
Minimum Bend Radius: 2-1/2 to 10 inch, 65 to 250 mm
Inside Diameter: 0.25 to 1 inch, 6.3 to 25 mm
Size: -4 to -16
Maximum Operating Temperature: View Part Details. (dependent on media), 158 °F (Air), 70 °C (Air), 185 °F (Water), 85 °C (Water), 257 °F (Oil), 125 °C (Oil)
Minimum Operating Temperature: View Part Details. (dependent on media), -40 °F (Oil)
Application: Automotive, Construction Equipment, Hydraulics, Industrial
Outside Diameter: 0.50 to 1.28 inch, 12.7 to 32.6 mm
Hose Reinforcement Material: 1 Braid of Fiber
Vacuum Pressure Rating: 15 to 28 inch-Hg, 381 to 711 mm-Hg
Cover Material: Synthetic Rubber MSHA approved
Hose Inner Tube Material: Synthetic Rubber
Weight: 0.09 to 0.37 lb/ft, 0.13 to 0.55 kg/m

Markets:
• Construction
• Utility Equipment
• Machine Tool
• Ground Support Equipment
• Industrial
• Automotive

Features/Benefits:
• 200-350 PSI working pressure in different sizes
• Easy assemblies that can be made in seconds, saving valuable time and cost
• In applications where a number of hoses lines carry different media, Push-Lok color-codes reduce timely “tracing” of lines, preventing disconnection of the wrong line and unnecessary, costly downtime
• Unique seal for a durable leak-free service

Applications:
• Petroleum base hydraulic fluid and lubricating oils
• Pneumatic
• Antifreeze solutions
• Diesel fuel – approved only when coupled with HY series fittings

Compatible Fittings:
• 82 series fittings
• HY series fittings
