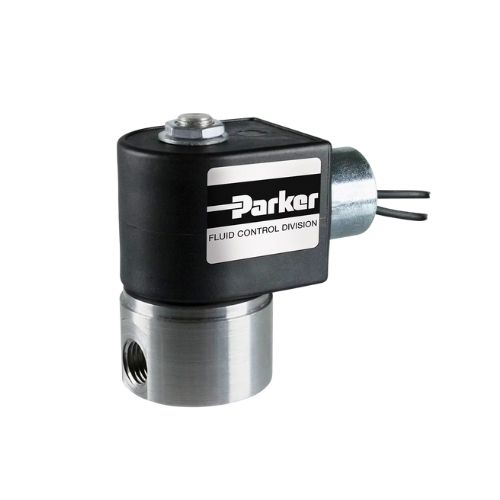

Parker 2-Way Normally Closed, 1/4″ NPT General Purpose Solenoid Valves

Description

Parker’s 2-Way Normally Closed 1/4″ NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2″ NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Technical Specifications
Application: General Purpose Valves
Product Series: 7000 and Gold Ring Series
Valve Type: 2-Way
Function: Normally Closed
Port Size: 1/4 inch
Input Voltage: 110/50 – 120/60, 220/50 – 240/60, 24/60, 12VDC, 24VDC
Body Material: Stainless or Brass
Seal Material: NBR, FKM
Orifice 1 Size: 3/64 to 7/16 inch
Flow Coefficient 1: 0.06 to 2.5 Cv
Power Consumption: 10, 22 (AC or DC) W
Coil Type: 1/2″ Conduit, 18″ Leads or DIN Form A
Maximum Pressure Differential: 20 to 600 (AC) or 3 to 600 (DC) psi
Number of Ports: 2
Actuation Type: Direct Acting, Pilot or Diaphragm, Pivoted Edge
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: NEMA 4X

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
