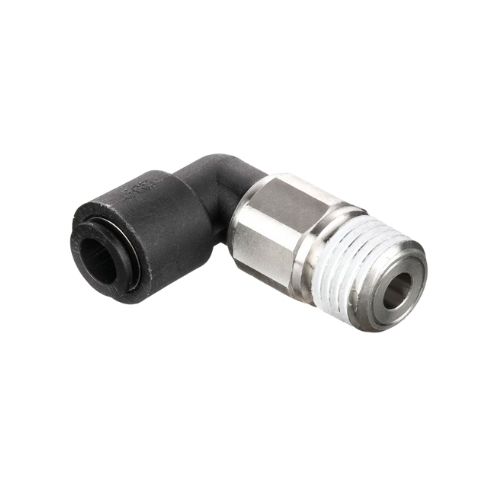

Oscillating Elbows

Parker’s oscillating elbows simplify assembly with push-to-connect design, eliminating sleeves and nuts. The D-seal ensures leak-free connections in static and dynamic positions. Compatible with Parker Parflex nylon, semi-rigid, polyurethane, and fluoropolymer tubing.

Description

Being the world’s leader in push-to-connect fitting technology Parker’s osciliating elbows simplifies circuit assembly. The oscillating fitting features low-friction washers enabling the fitting to rotate in conjunction with the stroke of the cylinder piston. Parker’s oscillating elbows reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A D-seal in the oscillating elbow provides a positive seal on the O.D. of the tubing in both static and dynamic positions. The D-seal deforms during insertion of the tubing lowering the insertion force without compromising the sealing feature. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.

For use with the following Parker Parflex Division tubing.
• Semi-Rigid nylon
• Nylon
• Polyurethane 95 Durometer Shore A
• Fluoropolymer

Technical Specifications
Connection Type: Push-to-Connect, Thread
Shape: Elbow 90°
Minimum Operating Temperature: -4 °F, -20 °C
Maximum Operating Temperature: 175 °F, 80 °C
Maximum Operating Pressure: 290 psi, 20 bar
Body Material: Glass Reinforced Nylon 6.6
Tube Material: Nylon Semi-Rigid, Polyurethane 95 Durometer Shore A, Nylon, Fluoropolymer
Seal Material: Nitrile
Gripping Ring Material: Stainless Steel
Specifications Met: ISO 14743, PED DI: 97/23/EC, RoHS DI: 2002/95/EC, DI: 1907/2006
Application: Air, Cutting Fluids, Inert Gases
Configuration: Tube to Pipe
Connection 1 Type: Push-to-Connect

Markets:
• Pneumatic
• Robotic
• Packaging
• Textile
• Semi-conductor

Features/Benefits:
• Glass reinforced nylon 6.6 body
• Stainless steel gripping ring
• Low-friction washers
• Nitrile D-seal provides a positive seal on the O.D. of the tube, in both static and dynamic positions
• Nitrile o-ring
• Nickel plated brass threads

Additional information

Main Diameter(mm)	50, 63
Sub-Main Diameter(mm)	25, 40, 50
