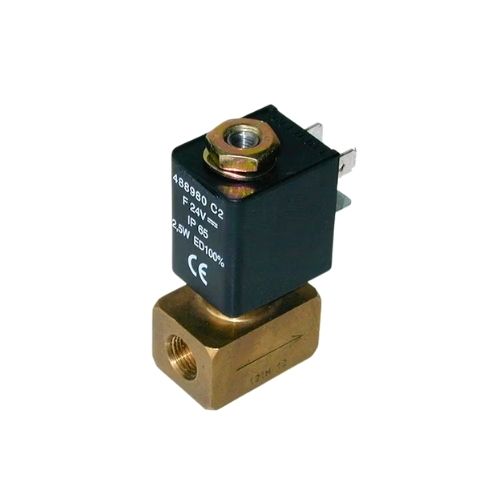

M Series miniature Solenoid Valves

Description

The M Series direct operated solenoid valves fullfill the demand of high performances and miniaturization in Industrial, Process, Transportation, Rail markets. The valves are very compact and performing, and can be equipped with a wide range of low or reduced power coils including Atex electrical parts. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications. Typicals are: compressors and air treatment, fluids & gas control/handling, actuators control in safe or harsh environment including ATEX, water and steam control.

Technical Specifications
Function: Normally Closed
Actuation Type: Direct Acting
Port Type: Pipe Mounting, Flanged
Body Material: Brass
Media: Air, Liquids, Inert Gases
Seat Material: Stainless Steel
Exhaust Orifice Size: n/a, 1.5 mm
Flow Coefficient 2: 0.12 m3/hour, 0.04 m3/hour, 0.05 m3/hour
Minimum Operating Pressure: 0 bar
Minimum Fluid Temperature: -10 °C
Maximum Fluid Temperature: 75 °C
Seal Material: FKM
Coil Power Consumption: 2 W, 2.5 W, 3 W, 5 W
Coil Temperature Range: -, -40 °C + 50 °C, -40°C +50°C, -40°C +85°C / +65°C
Insulation Class: -, F 155 °C
Coil Specifications Met: -, CE – UKCA, CE

Markets:
– Industrial
– Process
– Rail

Applications:
– Compressors
– Air Treatment
– Fluid & gas control/handling
– Actuators control
– Water and steam control

Features/Benefits:
– Compact Design
– Low Powe Consumption
– Coil Modularity including Atex
