Lubricated Rotary Screw Compressors [ESM/VS 160-290 Series]

Premium compressor manufacturer Gardner Denver has launched a new range of energy efficient 160 kW to 250 kW oil-injected, screw air compressors to enhance its existing range of GD machines.

The new premium efficiency machines with FOURCORE technology for two stage compression are available in 8 different models: ESM/VS160e, ESM/VS200e, ESM/VS250e, ESM/VS290e (high flow model) in fixed & variable speed.

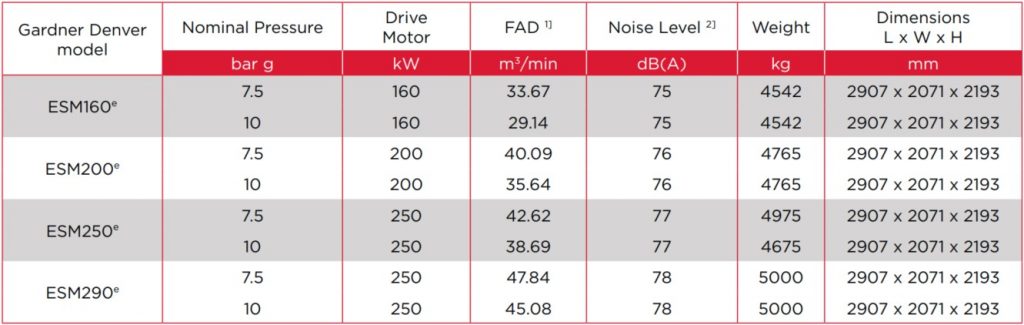

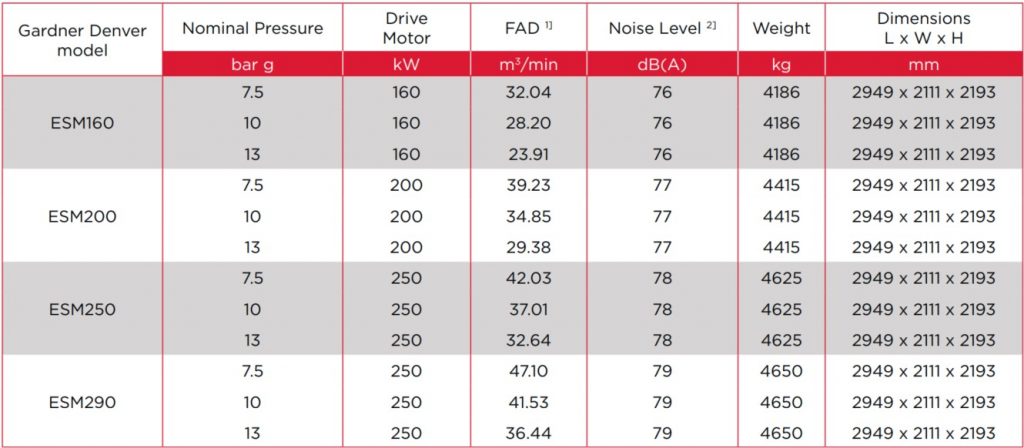

Fixed Speed

Working Pressure : 7.5-13 [bar]

Free Air Delivery : 23.91-47.10 [m3/min]

Working Power : 160-250 [kw]

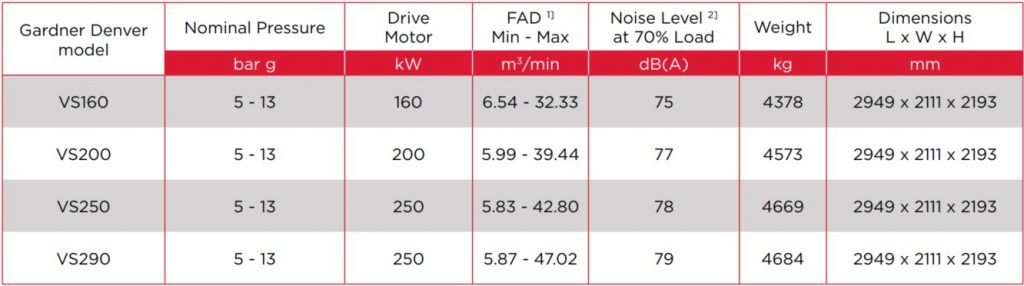

Variable Speed

Working Pressure : 5-13 [bar]

Free Air Delivery : 5.83-47.02 [m3/min]

Working Power : 160-250 [kw]

SKU: ESM/VS 160-290. Availability: In stock Category: Air Compressors.

Or Contact us via

+66 64 159 0479

Brand: Gardner Denver

Description
Catalog

Description

Lubricated Rotary Screw Compressors [ESM/VS 160-290] Product Details:

Customised for flexibility

The basic ESM / VS 160-290 compressors can be equipped with useful options to meet even the toughest demands for building up a flexible compressor station including compressor and refrigerant dryer, both mounted on a tank. As a result, you will get a compact air solution which can be installed quickly and efficiently wherever the need for high quality compressed air exists.

Fully integrated air-end design

Well proven air-ends The innovative integrated design, with oil separation, oil filter, thermostatic bypass valve, reduces the number of external hoses and components resulting in increased reliability.

Intergrated heat recovery to save even more energy

From 15 kW, the compressors are available with highly efficient heat recovery systems, which can be factory fitted or are available as retrofit kits comprising all the necessary pipe-work and fittings.

Minimum space requirements

Thanks to advanced compressor concept

Passes through a standard doorway
Simplifies installation work
Can be installed where it is needed
Expensive pipework can be eliminated

“GD Pilot” control system for reliability and simplicity of operation

The advanced design of the high efficiency airend allows operation at low rotational speeds, and consequently lowers the energy costs. The innovative integrated design, including oil separation, oil filter and thermostatic valve, reduces the number of external hoses and components offering excellent reliability.

Combined air/oil cooler

Equipped with a bypass for rapid warm-up and control of the oil temperature, reducing wear, eliminating condensate in the compressor system and providing low air discharge temperature.

High efficiency electric motor

The compressors are equipped with an energy saving IE3 electric motor.

Automatic belt tensioning system

The maintenance-free system provides automatic and accurate belt tension and extends the belt life.

Factory-filled lubricant

Reduces service costs by extending the oil change period to up to 4,000 hours.

Low noise levels

Allows the compressor to be placed at the point of use.

Up to 45°C ambient temperature

Reliable operation, even in challenging environments.

Key Benefits: ESM/VS 160-290 Series

The ESM / VS 160-290 fixed and variable speed screw compressors are designed to meet the high requirements which the modern work environment and machine operators place on them. As a result, our belt driven ESM / VS 160-290 compressors are extremely energy efficient, quiet, reliable and easy to use, ensuring long operating life and delivery of optimal air quality.
