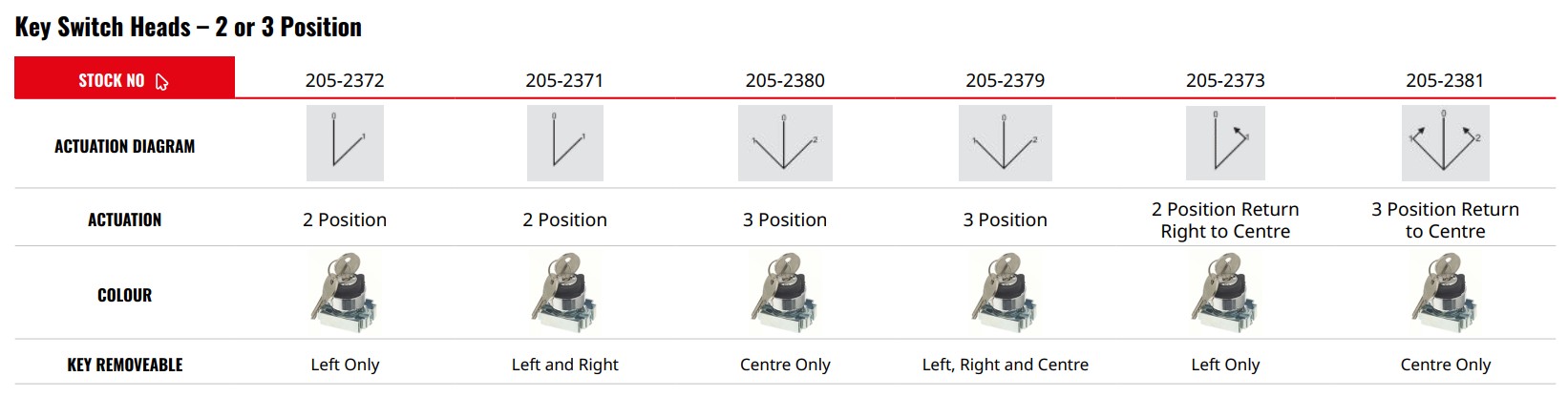

RS PRO Key Switch Heads 2 or 3 Position

2 or 3 position key switch heads for use with the RS PRO modular metal push button series. Robust design with modern aesthetics delivered via metal bezel. Simple installation via clamp screws.

Description

RS PRO Key Switch Heads 2 or 3 Position

2 or 3 position key switch heads for use with the RS PRO modular metal push button series. Robust design with modern aesthetics delivered via metal bezel. Simple installation via clamp screws.

Specifications:

22mm Diameter
Head Diameter 29mm
Latching and Spring return head options
IP65 Rated
Contact block mounting collar included
Mechanical life more than 1 million uses
UL approved
All key switches from the RS PRO plastic modular series are supplied with alike keys
