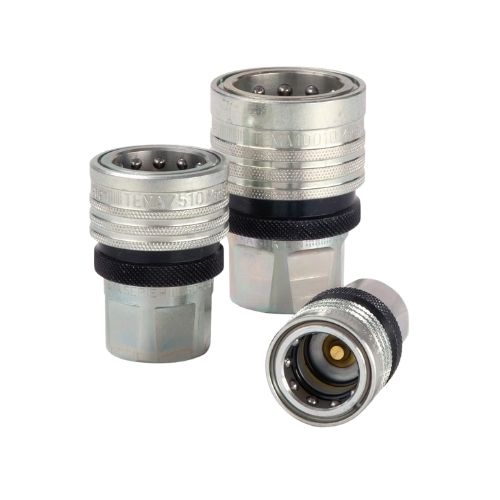

Hydraulic Quick Coupling with Parker Profile – Series H

Description

Parker’s Hydraulic Quick Coupling Series H is a further development of the standard hydraulic coupling, with some new materials to stand up to heavy conditions. The body of the coupling is made of steel so that the coupling functions reliably even when subject to substantial lateral forces and high impulses. Series H is also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. An additional safety locking ring prevents unintentional disconnection.

The right plug for series H can be found under series T.

Technical Specifications
Minimum Operating Temperature: -25 to -30 °C
Connection Type: Female Thread
Application: Medium Pressure Hydraulics
Body Size: 1/2 to 1 inch
Brand: TEMA
Fitting Connection Type: Female Thread
Interchange Type: Tema Profile
Maximum Operating Pressure: 280 to 320 bar, 4060 to 4640 psi
Maximum Operating Temperature: 212 to 392 °F, 100 to 200 °C
Media: Hydraulic Fluids
Seal Material: NBR / FKM
Valve Type: Poppet
Connection Thread Size: 1/2 to 1 inch
Length: 65 to 88 mm
Hex Size: 30 to 45 mm
Outside Diameter: 40 up to 62 mm
Materials of Construction: Brass / Steel
Operating Pressure: 280 to 320 bar

Markets:
– Agriculture
– Automotive
– Oil & Gas
– Process
– Power Generation
– Transportation
– Vocational & Municipal
– Defense
– Industrial
– Machine Tooling
– Material Handling
– Construction

Features/Benefits:
– Completely made of steel for heavy duty applications
– High flow rate – minimum pressure drop
– Twice as safe through double sealing in the plug
– Safety locking ring to prevent unintentional disconnection
– Maximum protection against corrosion
– Also available with pressure eliminator

Applications:
Easy connectiong / disconnection in hydraulic systems, both mobile and industrial applications
– Tractors
– Trucks
– Wheel loaders
– Military vehicles
– Presses
– Molding machines
