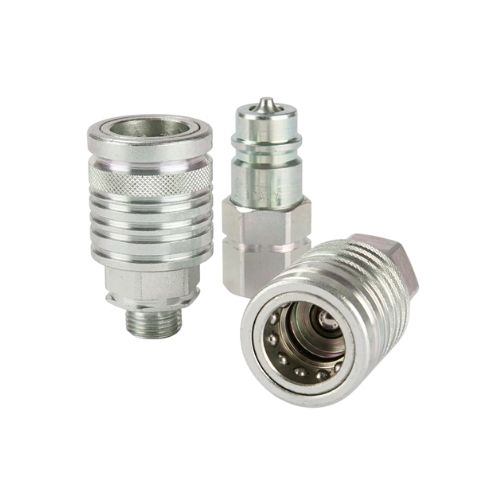

Hydraulic Quick Coupling – ISO A Profile – Series 2000

Description

“Parker’s Hydraulic Quick Coupling Series 2000 meets the requirements of ISO 7241-1 Series A. This series can be connected with other products complying with the same standard. It stands out for its modular construction with a broad choice of end configurations (variety of threads – BSPP and metric). Series 2000 is available with two valve options – Poppet valve or ball valve. This coupling system can be used in Push-Pull connection- / disconnection.

Technical Specifications
Minimum Operating Temperature: -25 °C
Length: 47 to 85 mm
Application: Medium Pressure Hydraulics
Body Size: 3/8 to 1/2 inch
Brand: Parker
Fitting Connection Type: Male Thread, Female Thread
Interchange Type: ISO 7241-1 Series A
Maximum Operating Pressure: 3040 to 4560 psi, 210 to 315 bar
Media: Hydraulic Fluids
Specifications Met: ISO 7241-1 Series A
Maximum Operating Temperature: 230 °F, 110 °C
Valve Type: Poppet
Hex Size: 22 to 36 mm
Outside Diameter: 17.3 to 38 mm
Materials of Construction: Steel
Seal Material: NBR
Weight: 75 to 380 g

Markets:
– Agriculture
– Construction
– Material Handling

Advantages:
– According to ISO 7241-1 Series A
– NBR seals and back-up ring in PTFE to withstand flow surges at high flow rates
– Double acting sleeve (Push-Pull)
– Ball or three-part poppet style valving with a molded shaped seal to prevent seal washout at high flow rates
– Chrome 6 free plating
– 10 locking balls to reduce brinneling effect

Applications:
– Agriculture and mobile equipment
– Construction equipment
– Material handling machines”
