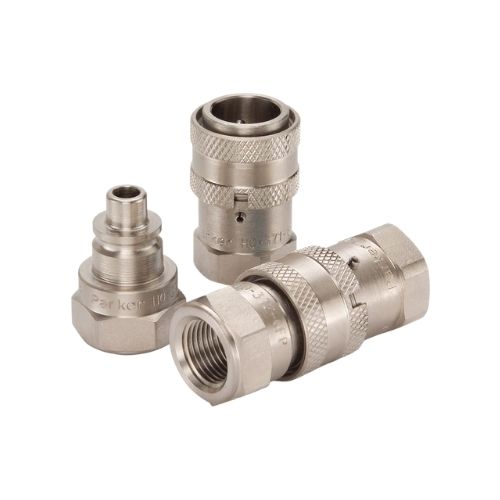

High Pressure, High Flow, Steel Quick Couplings with Sleeve Lock – HO Series

Description

HO Series Couplers (hydraulic) up to 15,000 psi connect with HO Series Nipples.
Parker’s HO Series are high pressure, steel, high flow quick couplings with manual sleeves. Couplers and nipples are unvalved, resulting in straight through, unrestricted flow. Electroless nickel plating provides corrosion resistance and sleeve lock guards against accidental disconnection.

Technical Characteristics:
• Sizes: 1/4”, 3/8″, 1/2”
• Material: Steel with electroless nickel plating
• Port Ends: Female NPTF
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Technical Specifications
Application: High Pressure Hydraulics, High Flow
Maximum Operating Pressure: 15000.0 psi, 1034.0 bar
Product Type: Manual Connect
Maximum Operating Temperature: 250 °F, 121 °C
Valve Type: n/a
Minimum Operating Temperature: -40 °F
Body Size: 1/4 to 1/2 inch
Flow Rate: 3 to 12 gal/min
Connection Type: Female NPTF
Vacuum Pressure Rating: No
Locking Sleeve Included: Yes
Body Material: Steel
Hex Size: 0.81 to 1.25 inch
Seal Material: Nitrile with PTFE Backup
Connection Thread Size: 1/4″-18 to 1/2″-14 inch
Plating Type: Electroless Nickel

Markets:
• Pulp and paper
• Oil and gas
• Testing

Features/Benefits:
• Sleeve lock guards against accidental disconnection
• Straight through, unvalved design provides full flow with minimal pressure drop
• Electroless nickel plating adds corrosion resistance

Applications:
• Paper and pulp processing
• Refinery systems
• Testing systems
