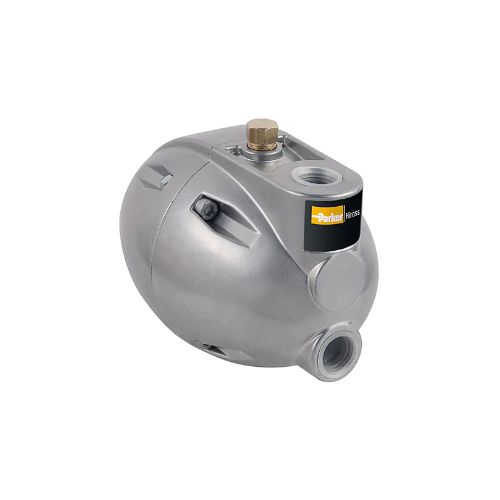

HDF Series Zero Loss Mechanical Float Condensate Drain

Description

HDF series drains are compact and highly reliable automatic float controlled condensate drains for industrial compressed air and biogas treatment applications. Because the drain never runs completely dry, no air/gas is lost during the discharge process. HDF series condensate drains therefore reduce the waste of compressed air/gas which has a positive effect on the efficiency of the whole system.

Benefits:
• Zero air/gas loss
• Improved reliability due to large cross section outlet valve opening which minimizes the chance of blockage
• A low velocity condensate outlet ensures that no emulsion is created and supports installation of a static oil/water separator
• No need for electrical wiring, as no power supply is required
• Manual drain valve for discharge and operational check fitted as standard

Technical Specifications
Division: Gas Separation and Filtration Division EMEA
Brand: Parker
Outlet Port Size: 1/2″ inch
Technology: Filtration
Maximum Operating Pressure: 1 or 16 barg, 14.50 or 232.06 psig
Application: Compressed Air and Biogas Applications
Product Type: Condensate Drain
Product Style: External Float Drain
Weight: 0.9 or 1.9 kg, 0.9 or 1.9 Kg<br/>(2.0 or 4.2 lbs)
Product Series: HDF
Width: 156 or 266 mm, 156 or 266 mm, 6.1 inch, 10.5 inch
Industry: Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Biogas
Depth: 108 mm, 108.0 mm, 4.3 inch
Flow Rate: 5400 to 15000 m3/hour, 3178 to 8829 CFM
Height: 111 mm, 111.0 mm, 4.4 inch
Options: Air Vent<br/>For Biogas
Operating Pressure: Standard: 1 to 16 barg<br/>(15 to 232 psig)<br/>, Biogas: 0 to 1 barg (0 to 14.5 psig)
Operating Temperature: 2 to 60 °C, 35 to 140 °F
Electrical Requirements: Not Applicable
Port Size: 1/2 to 1 inch Inlet, 1/2 inch Outlet
Connection Type: BSPP or NPT Depending on Model
Materials of Construction: Standard<br/>Body: Aluminium<br/>Float: Plastic<br/>Lever: Plastic<br/>Biogas<br/>Body: Aluminium<br/>Float/Lever: Polyamide/ Stainless Steel
