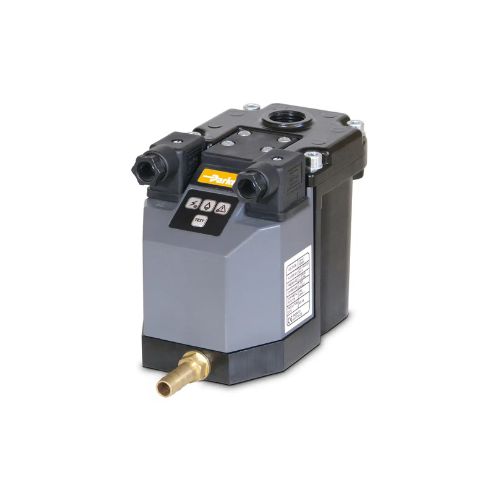

ED4100 Series Electronic Level Sensing Condensate Drains (up to 50 bar g)

Description

The safe and reliable removal of large amounts of condensate, especially at critical installation points, such as compressor aftercoolers, storage vessels, and separators, where approx. 70 to 80% of condensate arises, really make Parker’s ED4100 range of condensate drains stand out. The ED4100’s integrated dirt filter, large valve cross-section, direct controlled 2/2-way solenoid valve and capacitive level sensing allows for the safe, reliable, and economical removal of condensate, whilst simultaneously preventing any loss of compressed air.

Features

• Zero air loss
• Automatic level sensing operation
• Maximum operating pressure 50 barg (725 psig)
• Self-monitoring and cleaning
• NPT and BSPP options available

Installation is simple and secure using the wall bracket provided, as well as upper or side attachment, allowing for vibration-free installation – even in enclosed spaces. For low ambient temperatures, a heater can be retrofitted. A service kit that contains all of the required wearing parts is available for quick and easy maintenance.

Please note: condensate volumes depend on the point of installation, whether it be on a compressor, refrigeration dryer or filter etc.

Technical Specifications

Division: Gas Separation and Filtration Division EMEA
Brand: Parker
Technology: Filtration
Application: Compressed Air Applications
Product Type: Condensate Drain
Product Style: Electronic Level Sensing Drain
Product Series: ED4100
Industry: Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals
Flow Rate: 60000.0 m3/hour, 35316.0 CFM (Filter), 6000.0 m3/hour (Filter), 3532.0 CFM Aftercooler, Air Receiver), 12000.0 m3/hour (Aftercooler, Air Receiver), 7063.0 CFM (Refrigeration Dryer)
Operating Pressure: 16 to 50 barg Maximum, 232 to 725 psig Maximum
Operating Temperature: 2 to 35 °C, 50 to 122 °F
Electrical Requirements: Options: 230/1/50-60, 115/1/50-60 or 24V DC
Port Size: 1/2 inch Inlet, 1/4 inch Outlet
Ingress Protection Rating: IP65
Specifications Met: PED 97/23/EC<br/>EMC 2004/108/EU<br/>LVD 2006/95/EU
Materials of Construction: Condensate Housing: Aluminum, Anodized<br/>Housing lid with sensor: PBT<br/>Housing Seals: NBR<br/>2/2 Way Valve: Stainless Steel / Bronze<br/>Valve Seal: FPM<br/>Dirt Filter: Stainless Steel<br/>Locking screws, outlet spout: Plated Brass<br/>
Connection Type: BSPP or NPT
Height: 115.0 mm, 4.5 inch
Width: 178.0 mm, 7 inch
Depth: 87.0 mm, 3.4 inch
Weight: 1.9 Kg<br/>(4.2 lbs)
